Subsea Electronics Housing

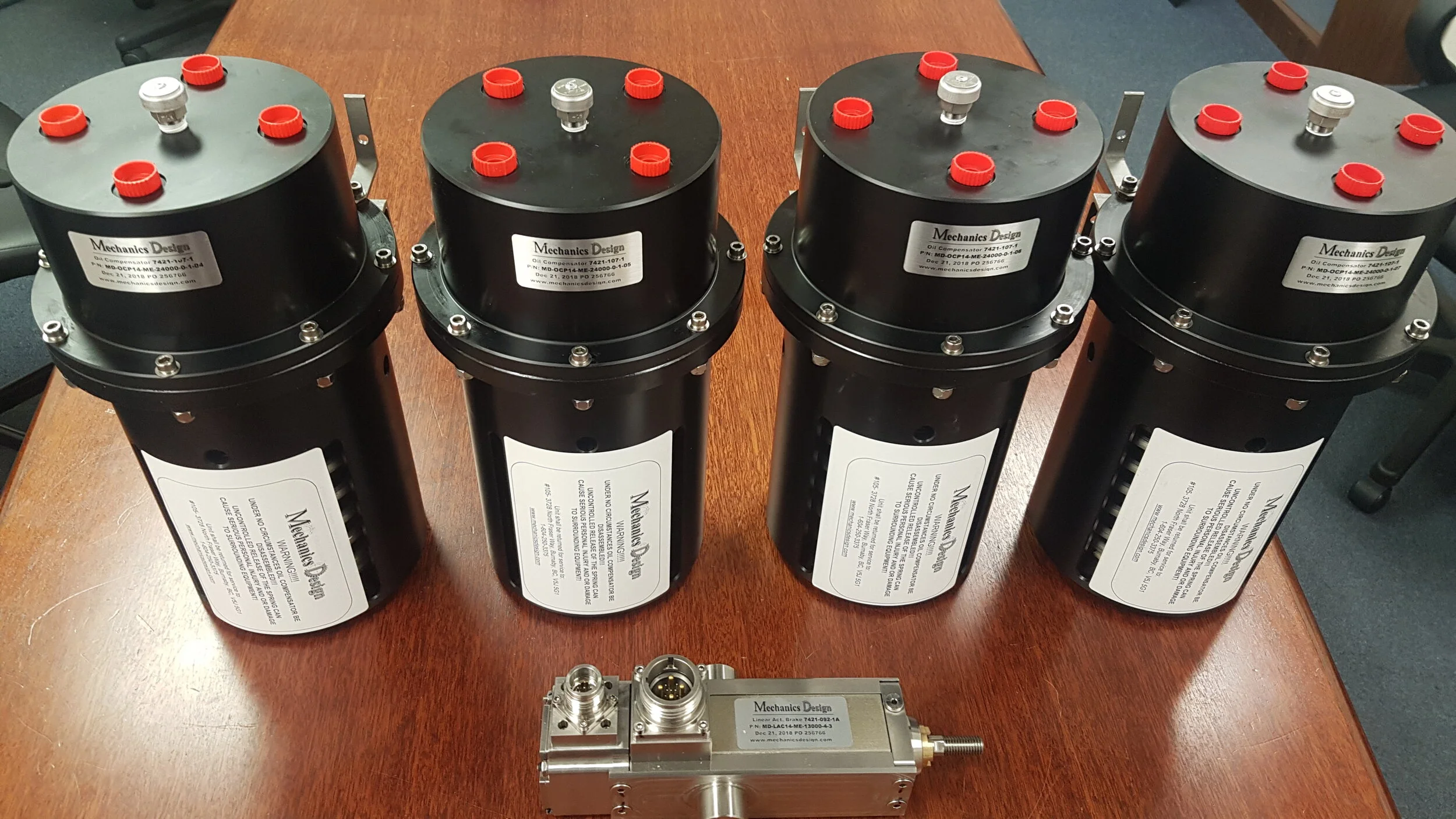

NV Mechanics Design Ltd. designs and manufactures electronics housings, including one atmosphere pressure vessels, for subsea applications. Our vessels are used in subsea applications for ROV Trenchers and Subsea Drills. Based on our client's requests, they can be built of Aluminum 6061-T6, Titanium or Stainless Steel material.

Features:

• Aluminum (6061-T6), Stainless Steel (316, 17-4 PH COND 1150), Super Duplex Stainless Steel, Titanium and Other Materials

• Fail safe sealing design (dual radial and face O-rings)

• Various end cap closure methods

• Seal check port (in between radial and face O-ring) and purging port (nitrogen purging for delicate internal electronics)

• Custom external mounting for easy handling and servicing

• Custom connector/penetration configuration

• Custom internal electronics support structure

• Optimized size vs. weight

• Hard anodized surface finish (aluminum); passivated surface finish (stainless steel)

• Design standards: ABS, DNV, ASME

• Static Finite Element Analysis (FEA) is performed on all designed components

• Buckling FEA is performed on the tube

• Stress analysis hand calculations are performed for further confidence on the FEA results.
